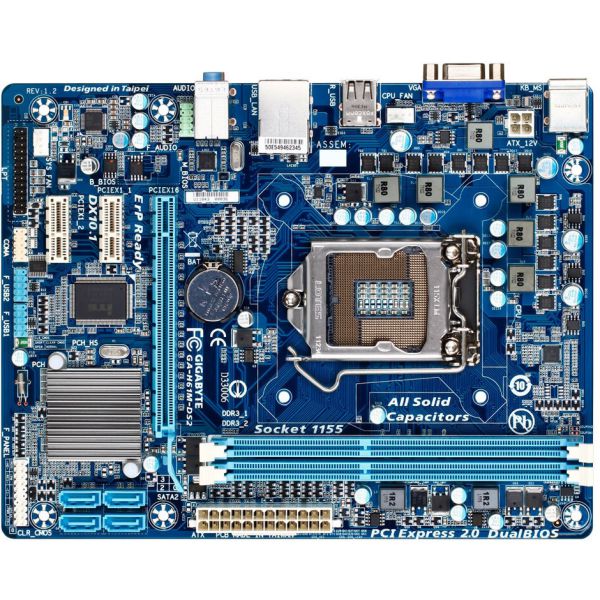

Descrição
– CPU:
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package.
L3 cache varies with CPU.
– Chipset:
Intel® H61 Express Chipset.
– Memória:
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory.
Dual channel memory architecture.
Support for DDR3 1333/1066/800 MHz memory modules.
Support for non-ECC memory modules.
– Gráficos Onboard Integrated Graphics Processor:
1 x D-Sub port.
– Áudio:
Realtek ALC887 audio codec.
High Definition Audio.
2/4/5.1/7.1-channel.
– LAN:
1 x Atheros GbE LAN chip (10/100/1000 Mbit).
– Slots de Expansão:
1 x PCI Express x16 slot, running at x16.
2 x PCI Express x1 slots.
– Interface de Armazenamento Chipset:
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
– USB Chipset:
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
– Conectores Internos I/O:
1 x 24-pin ATX main power connector.
1 x 4-pin ATX 12V power connector.
4 x SATA 3Gb/s connectors.
1 x CPU fan header.
1 x system fan header.
1 x front panel header.
1 x front panel audio header.
2 x USB 2.0/1.1 headers.
1 x parallel port header.
1 x serial port header.
1 x clearing CMOS jumper.
– Conectores Painel Traseiro:
1 x PS/2 keyboard port.
1 x PS/2 mouse port.
1 x D-Sub port.
4 x USB 2.0/1.1 ports.
1 x RJ-45 port.
3 x audio jacks (Line In/Line Out/Microphone).
– Controlador I/O:
iTE IT8728 chip.
Monitoramento H/W.
System voltage detection.
CPU/System temperature detection.
CPU/System fan speed detection.
CPU fan speed control.
– BIOS:
2 x 32 Mbit flash.
Use of licensed AWARD BIOS.
Support for DualBIOS™.
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b.
– Características Exclusivas:
Support for @BIOS.
Support for Q-Flash.
Support for Xpress BIOS Rescue.
Support for Download Center.
Support for Xpress Install.
Support for Xpress Recovery2.
Support for EasyTune.
Support for Smart 6™.
Support for Auto Green.
Support for ON/OFF Charge.
Support for Cloud OC.
Support for 3TB+ Unlock.
Support for Q-Share.
– Form Factor:
Micro ATX Form Factor.
22.6cm x 17.4cm.
